Piston & Rod Seals — function, differences, and how to choose the right seal

Hydraulic piston and rod seals are the heart of any hydraulic cylinder. They prevent fluid from crossing chambers, maintain pressure, and keep contaminants out. Although both are dynamic seals used in reciprocating cylinders, piston seals and rod seals perform different jobs and face different mechanical stresses — so choosing the correct design and material for each is essential for long service life and reliable performance.

What each seal does

• Piston seals sit in a groove on the piston and create the pressure-tight barrier between the cylinder’s high-pressure and low-pressure sides. Their primary job is to seal under load while allowing smooth reciprocation of the piston inside the bore.

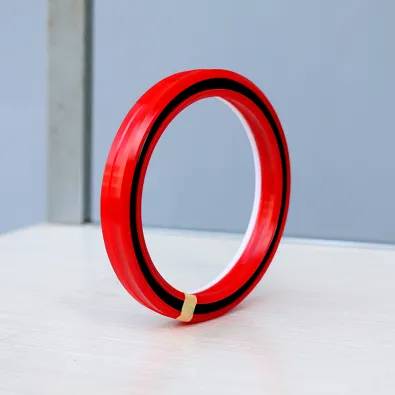

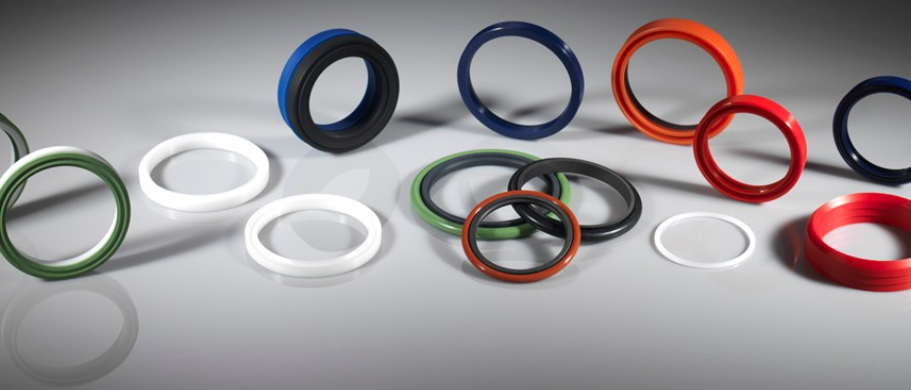

• Rod seals (also called piston rod seals) are mounted in the gland and seal the reciprocating rod, preventing hydraulic fluid from leaking out of the cylinder while resisting the abrasion and contamination that comes from the outside environment.

Key design differences

• Pressure direction: Piston seals are typically pressure-energized from behind the seal, whereas rod seals usually face pressure pushing from the inside of the cylinder toward the outside.

• Motion & friction: Rod seals operate against a moving shaft and must manage sliding friction, while piston seals operate inside the bore and must handle axial load with low friction across the piston diameter.

• Geometry and support: Piston seals often use wider cross-sections, composite constructions or back-up elements to resist high differential pressures. Rod seals prioritize low friction, tight tolerances, and abrasion resistance; they’re often paired with wipers and guide rings.




Common materials and when to use them

• Polyurethane (PU): excellent abrasion resistance and mechanical strength — common for high-pressure piston seals.

• Nitrile (NBR): good general-purpose material for oils and moderate temperatures.

• Hydrogenated Nitrile (HNBR): better heat and chemical resistance than NBR — suitable for higher temperature and harsher fluids.

• PTFE and PTFE composites: extremely low friction and excellent chemical resistance; often used where stick-slip must be minimized or where wide temperature ranges are present.

• Elastomer/PTFE combinations: provide an elastomer energizer for good conformity and a PTFE sliding surface for low friction and long wear life.

Typical failure modes

• Abrasion: hard particles and contaminants cause surface wear, especially on rod seals.

• Extrusion/cutting: excessive pressure or large clearances can cause seal material to extrude into gaps and shear.

• Thermal/chemical degradation: exposure to unsuitable temperatures or fluids will harden or swell the seal.

• Installation damage: nicks, twists, or incorrect groove fits drastically shorten seal life.

Practical selection tips

1. Match material to fluid and temperature. Check compatibility and temperature ratings before final selection.

2. Consider speed and pressure. High pressure often needs composite piston seals with back-up rings; high sliding speeds favour low-friction materials.

3. Control gap and surface finish. Minimize extrusion gaps, and ensure rod and bore surfaces meet recommended roughness to avoid rapid wear.

4. Use wipers and guide rings. Add wipers to exclude contamination and guide rings to prevent metal-to-metal contact and reduce side loads.

5. Plan maintenance & inspection. Regularly inspect for leaks, contamination and wear; replace seals proactively if operating conditions are harsh.

Installation & maintenance pointers

• Clean components thoroughly before assembly.

• Use assembly tools and expanders to avoid cutting or nicking seals.

• Apply a thin film of compatible lubricant to prevent dryness during initial strokes.

• Check groove dimensions, radial clearances, and surface finish against recommended values.

When to ask for help

If you have specific cylinder details (bore/rod diameters, operating pressure, speed, temperature range, hydraulic fluid and environmental contaminants), we can recommend the ideal piston and rod seal combination — material, cross-section, and any required back-up or wiper elements.
