Piston Seals vs Rod Seals: Key Differences Explained

What is the difference between piston seal and rod seal?

In hydraulic and pneumatic systems, seals are essential for smooth operation and preventing leaks. Among the most important types are piston seals and rod seals. Although both are critical for system performance, they have distinct roles and designs.

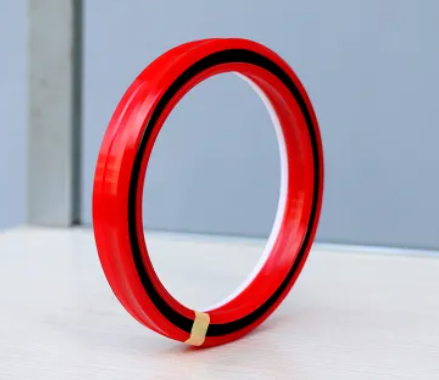

Rod and Piston Seals

Rod Seal Function:
A rod seal serves as a pressure barrier, minimizing fluid bypass along both the dynamic surface (rod or ram) and the static surface (stuffing box bore) under various operating conditions. It also regulates the fluid film during the extension of the cylinder rod, ensuring proper sealing and system performance.

Piston Seal Function:
A piston seal minimizes fluid bypass between the piston head and the cylinder bore under varying operating conditions, acting as a pressure barrier. It helps maintain system efficiency and plays a key role in controlling cylinder motion and maintaining piston position.

What Are Piston Seals?

What They Do: Piston seals prevent fluid from passing through the piston as it moves back and forth in a cylinder. Their main function is to build and maintain pressure on one side of the piston to generate motion.

Where They're Used: Piston seals are commonly found in hydraulic cylinders used in lifts, industrial machinery, and vehicles.

How They're Made:

• ·  They are typically made from materials such as polyurethane, rubber, or PTFE (Polytetrafluoroethylene) for durability and pressure resistance.

• ·  Some piston seals are single-acting, working in one direction, while others are double-acting, suitable for bidirectional use.

What Are Rod Seals?

What They Do: Rod seals prevent fluid from leaking along the rod as it moves in and out of the cylinder. They are essential for maintaining internal pressure and keeping dirt or debris from entering the system.

Where They're Used: Rod seals are commonly used in hydraulic and pneumatic cylinders for construction machinery, manufacturing equipment, and aerospace applications.

How They're Made:

• ·  Rod seals are typically made from materials such as nitrile rubber, fluorocarbon, or PTFE, which can withstand a range of pressures and temperatures.

• ·  Common designs include buffer seals, wiper seals, and primary rod seals, all aimed at ensuring long-lasting performance.

How Piston Seals and Rod Seals Differ

Purpose:

• ·  Piston seals prevent fluid from crossing the piston within the cylinder.

• ·  Rod seals stop fluid from leaking along the rod and keep contaminants out.

Location:

• ·  Piston seals are located inside the cylinder, around the piston.

• ·  Rod seals are positioned at the cylinder’s opening, surrounding the rod.

Design Focus:

• ·  Piston seals are designed to contain pressure and minimize wear, supporting smooth piston movement.

• ·  Rod seals are designed to prevent leaks and block external debris from entering the system.

Material Requirements:

• ·  Piston seals require materials suited to handling internal pressure.

• ·  Rod seals need materials that can withstand external environmental factors.

How to Pick the Right Seal

To ensure your system operates efficiently, consider the following factors when selecting a seal:

• ·  Pressure and temperature range of your application

• ·  Type of fluid being used

• ·  Motion type, whether linear or rotary

• ·  Level of environmental exposure
