Understanding Piston Seals in Hydraulic Cylinders: Function, Failure, and Quality

Piston seals play a critical role in hydraulic systems, ensuring optimal performance, durability, and efficiency. These seals prevent fluid leakage, maintain pressure, and reduce wear and tear within the system. A deeper understanding of piston seals in hydraulic cylinders, their function, causes of failure, and the importance of high-quality seals is essential for anyone involved in maintaining or designing hydraulic systems. This comprehensive guide will explore every facet of piston seals, providing the detailed knowledge you need to optimize the performance and longevity of hydraulic cylinders.

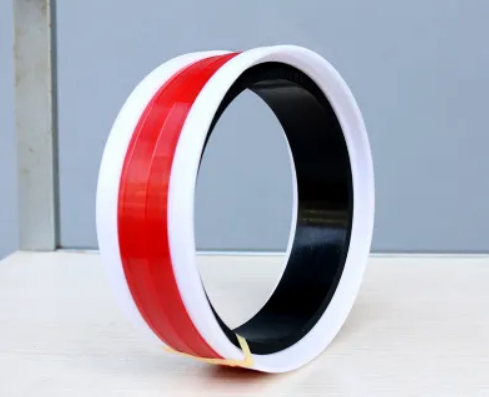

What Are Piston Seals?

A piston seal is a component within a hydraulic cylinder that helps to create a barrier between the piston and the cylinder bore. It prevents the hydraulic fluid from leaking out of the cylinder while simultaneously preventing contaminants from entering the system. The function of a piston seal is integral to the hydraulic system's overall performance because it ensures that pressure is maintained within the cylinder, facilitating the transfer of force.

Piston seals must withstand high pressures, temperatures, and mechanical stresses while maintaining a tight seal. Their design and materials must be chosen carefully to ensure long-lasting functionality, even in demanding environments.

The Function of Piston Seals in Hydraulic Cylinders

The primary function of piston seals is to prevent fluid leakage from the hydraulic cylinder, which could lead to a loss of pressure and ultimately reduced system performance. The seal is located between the piston and the cylinder wall, where it performs several crucial tasks:

1. Pressure Containment: Piston seals are responsible for ensuring that hydraulic pressure remains within the cylinder during operation. This prevents the fluid from escaping, ensuring efficient movement of the piston.

2. Minimizing Wear: Hydraulic cylinders are subject to harsh conditions, including high pressures and continuous motion. Piston seals reduce friction between the piston and cylinder walls, minimizing wear and prolonging the life of the components.

3. Preventing Contamination: Piston seals also act as a barrier against external contaminants, such as dust and dirt. These contaminants can negatively impact the performance of the hydraulic system, causing damage to sensitive components.

4. Improved Efficiency: A well-designed piston seal can increase the efficiency of a hydraulic cylinder by maintaining consistent pressure and reducing leakage. This results in energy savings and reduces the need for frequent repairs.

Causes of Piston Seal Failure

Piston seal failure can occur due to a variety of factors, and understanding the causes of failure is critical for preventing costly repairs and minimizing downtime. Some of the most common causes of piston seal failure include:

1. Improper Installation

One of the leading causes of piston seal failure is improper installation. If the seal is not installed correctly, it may not provide an effective barrier, leading to leakage and loss of pressure. Ensuring that seals are properly aligned, sized, and installed is crucial for their longevity.

2. Contamination

Contaminants such as dirt, dust, and debris can cause serious damage to piston seals, leading to premature wear and failure. Contamination can cause abrasion, pitting, and scoring of the piston and cylinder walls, compromising the integrity of the seal.

3. Overheating

Piston seals are designed to withstand a certain range of temperatures, but excessive heat can degrade the seal material, causing it to soften, swell, or harden. Overheating often results from high fluid temperatures or excessive friction within the cylinder.

4. Excessive Pressure

Hydraulic systems operate under specific pressure ratings, and exceeding these pressure limits can cause piston seals to fail. Overpressure can distort or damage the seal, leading to fluid leakage and system inefficiency.

5. Chemical Exposure

Exposure to harsh chemicals or incompatible fluids can degrade the seal material, leading to cracks, swelling, or loss of elasticity. Chemical resistance is a vital consideration when selecting piston seals for hydraulic applications.

6. Incorrect Seal Material

The material selection for piston seals is paramount to their performance. Using a seal material that is not suited to the operating conditions—such as temperature, pressure, or fluid type—can result in premature failure. High-quality materials such as polyurethane, nitrile rubber, and PTFE are often used to enhance performance.

Signs of Piston Seal Failure

Recognizing the signs of piston seal failure early is critical for preventing further damage to the hydraulic cylinder and the system as a whole. Some common signs of failure include:

- Fluid Leakage: One of the most obvious signs of piston seal failure is the presence of hydraulic fluid leakage from the cylinder. This indicates that the seal is no longer maintaining the required pressure and containment.

- Loss of Pressure: If the hydraulic system experiences a sudden loss of pressure, it could be a sign that the piston seal is no longer effective.

- Excessive Heat Generation: If the system begins to overheat, it may indicate that friction is increasing due to a failing seal. This can lead to increased wear on the piston and cylinder.

- Erratic Performance: If the hydraulic cylinder is not operating smoothly or shows inconsistent movement, this could be a sign that the piston seal is damaged.

How to Prevent Piston Seal Failure

Preventing piston seal failure requires proactive maintenance and careful selection of materials and designs. To ensure the longevity of piston seals, consider the following best practices:

- Regular Inspection: Regularly inspect the hydraulic system for signs of leakage, wear, or contamination. Early detection can prevent more severe damage.

- Proper Maintenance: Clean and replace seals as needed, and ensure the hydraulic fluid is free of contaminants. Change seals periodically based on manufacturer recommendations.

- Correct Installation: Ensure that piston seals are installed according to manufacturer instructions, and use the correct tools to avoid damaging the seal during installation.

- Monitor Operating Conditions: Keep an eye on pressure, temperature, and fluid quality to ensure that the piston seals are operating within the specified parameters.

- High-Quality Seals: Invest in high-quality piston seals that are designed for the specific requirements of your hydraulic system. Selecting the right material and seal type can prevent failure and prolong the life of your equipment.

The Importance of Quality Piston Seals

Using high-quality piston seals is essential for the longevity and efficiency of your hydraulic system. Premium seals made from durable materials like polyurethane, Viton, or PTFE provide superior sealing performance, resist harsh chemicals and high pressures, and can withstand high temperatures. They help to reduce downtime, prevent costly repairs, and ensure the smooth operation of the hydraulic cylinders.

When selecting piston seals, it is vital to consider factors like the type of hydraulic fluid, the operating temperature, pressure, and any environmental conditions the seals will be exposed to. By choosing the right seal, you can optimize the performance of your hydraulic systems and extend the lifespan of your equipment.
