A conveying system can be integrated into operations in multiple ways to improve efficiency and speed. Before installing a roller conveyor system, several key factors must be carefully evaluated to ensure the system is properly matched to the specific application requirements.
When designing a conveyor system, available installation space must be considered to ensure proper integration. This includes identifying key interaction points, required clearances, and any obstacles that may affect material flow. The choice between automated and manual systems also depends on the application and operational needs.

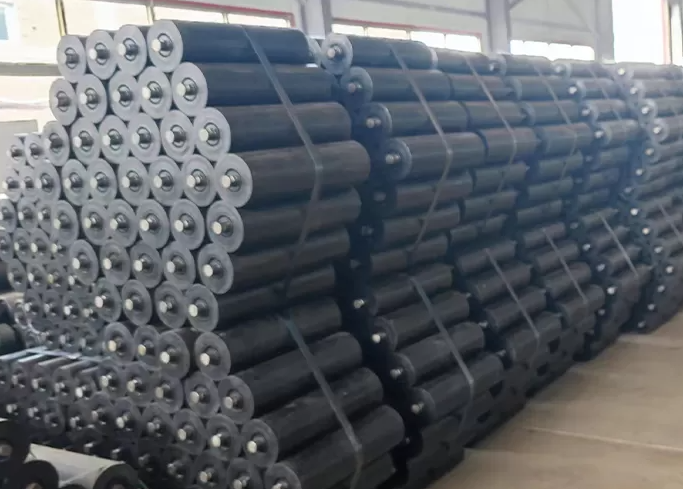

The conveyor frame is typically made from aluminum or steel, selected according to load requirements and structural capacity. Rollers, which directly contact products and affect movement, are available in different materials. Some are coated with plastic or rubber to increase friction, while others are made from aluminum or steel. Selecting the correct roller material is essential to ensure stable product transport and maintain system reliability.
Selecting the correct roller size and conveyor layout is important to avoid interference with product movement. Heavy or high-impact loads require larger rollers, while lighter loads can be handled with smaller rollers.
Roller spacing is designed so that at least three rollers are always in contact with the product. For wider products, high-set rollers are used, while low-set rollers help keep items properly aligned within the conveyor frame.
Load capacity must be determined after the system layout is finalized. Overloading may cause system failure or stoppage. Key factors influencing load capacity include conveyor length, bed width, and drive configuration. Gravity roller conveyors are best suited for flat-bottom, light to medium-weight items such as totes, boxes, and bags, but they are not ideal for fragile or irregularly shaped products.
Conveyor speed is measured in feet per minute (FPM) and typically averages around 65 FPM, which is comparable to the walking speed of a person carrying a 50-pound load. Although this is a standard reference speed, it can be adjusted according to specific application requirements.
Roller conveyor systems are available in various configurations, including straight, angled, horizontal, and curved layouts, as well as designs with pockets, slats, or Z-frames. For long-distance conveying, systems such as line shaft roller conveyors can be used to improve efficiency and reduce energy consumption. These systems can be installed in different facility layouts as long as design constraints and operational factors are properly considered.
The drive system in an automated conveyor is responsible for moving materials through the system and typically includes support bearings to ensure smooth operation. Drive systems can transport goods in both directions and may be installed at different positions, such as the head, middle, or end of the conveyor line.
Depending on the configuration, drive systems may operate at fixed or variable speeds and are typically powered by 24V DC motors connected to gears, rollers, or shafts. Variable speed control allows adjustment of material flow rates based on operational needs.
When designing a roller conveyor system, product behavior, system control, and placement must be considered. Environmental factors such as heat, dust, dirt, and moisture can affect system performance. In such conditions, more robust designs such as chain-driven or shaft-driven conveyors may be required. Zero-pressure accumulation systems are suitable where product collisions or back pressure may occur. Although gravity conveyors have a simpler structure, they are still affected by wear and environmental conditions like more complex systems.
The Occupational Safety and Health Administration (OSHA) regulates conveyor systems to ensure compliance with safety standards. Manufacturers must follow these requirements during design and production. Conveyor systems improve workplace safety by reducing the need for manual lifting and transporting of heavy materials, thereby lowering the risk of worker injury.
In addition to the routine maintenance required for all industrial equipment, roller conveyors also have certain limitations that may influence their selection and application. These factors should be carefully evaluated to ensure the conveyor system matches the specific operational requirements.
Damage to Goods – Gravity roller conveyors provide limited control over product movement, which may increase the risk of goods being damaged during transport if speed and handling are not properly managed.
Weight – Roller conveyor systems are generally heavy structures, and their overall weight increases as the system length expands, which can impact installation and facility planning.
Conveyor Speed – Non-powered roller conveyors do not provide control over product speed, as movement depends on gravity or manual pushing, which limits precision in material flow control.
Cleaning – Roller conveyors can be difficult to clean due to the large number of rollers and continuous operation. In facilities with multiple conveyor lines, dedicated cleaning staff may be required. Keeping rollers free from dust and debris is essential for maintaining optimal performance.
Space – Like most conveying systems, roller conveyors require significant floor space. This must be considered during system design, as large areas of the facility may need to be allocated for installation and operation.
Conveying systems consist of interconnected components that depend on each other for smooth and reliable operation. Different types of roller conveyors require regular maintenance to ensure consistent performance. To prevent unexpected failures and maintain system efficiency, routine inspection of all critical components is essential.
The drive chain and sealed roller bearings must be properly lubricated with oil. Operators should be trained in correct inspection procedures for key components, including bearings, rollers, shafts, belts, and DC motors.
Drive rollers should be cleaned regularly to prevent blockages within the system. Any residue or debris that accumulates during operation must be removed from the roller surfaces. Cleaning agents should be selected according to the roller material; for example, stainless steel rollers can be rinsed with water and cleaned using detergent. Preventative maintenance helps identify minor issues early and ensures stable system performance.
Preventative maintenance includes checking conveyor rollers for smooth and consistent rotation, inspecting drive chains or belts for wear, and ensuring rollers remain properly leveled. All rollers should move uniformly in the same direction; any wobbling or failure to rotate indicates a fault that requires immediate attention. Bearings, which are prone to wear over time, should also be regularly inspected to confirm proper operation.
Like all continuously operating equipment, roller conveyors are affected by wear and environmental conditions. High temperatures and humidity can negatively impact performance, requiring more frequent inspections. To maintain optimal efficiency, systems should be allowed to cool when necessary and scheduled maintenance checks should be carried out on a regular basis.
Roller conveyors are material handling systems that use a series of evenly spaced cylindrical rollers to move boxes, supplies, materials, objects, and parts across open areas or between different elevation levels.
Each roller conveyor system is designed according to the specific requirements of its application.
Although gravity roller conveyors are the most commonly recognized type, other systems include belt-driven roller conveyors, chain-driven roller conveyors, line shaft roller conveyors, and zero-pressure accumulation conveyors.
Like all mechanical equipment, roller conveyor systems require regular maintenance and cleaning to ensure safe and efficient operation.
OSHA and ASME provide regulations and guidelines governing the design, installation, and use of conveyor systems to ensure safety and compliance in industrial environments.
